Aftermarket Set - Remote for GM 15913421 + B111 Key

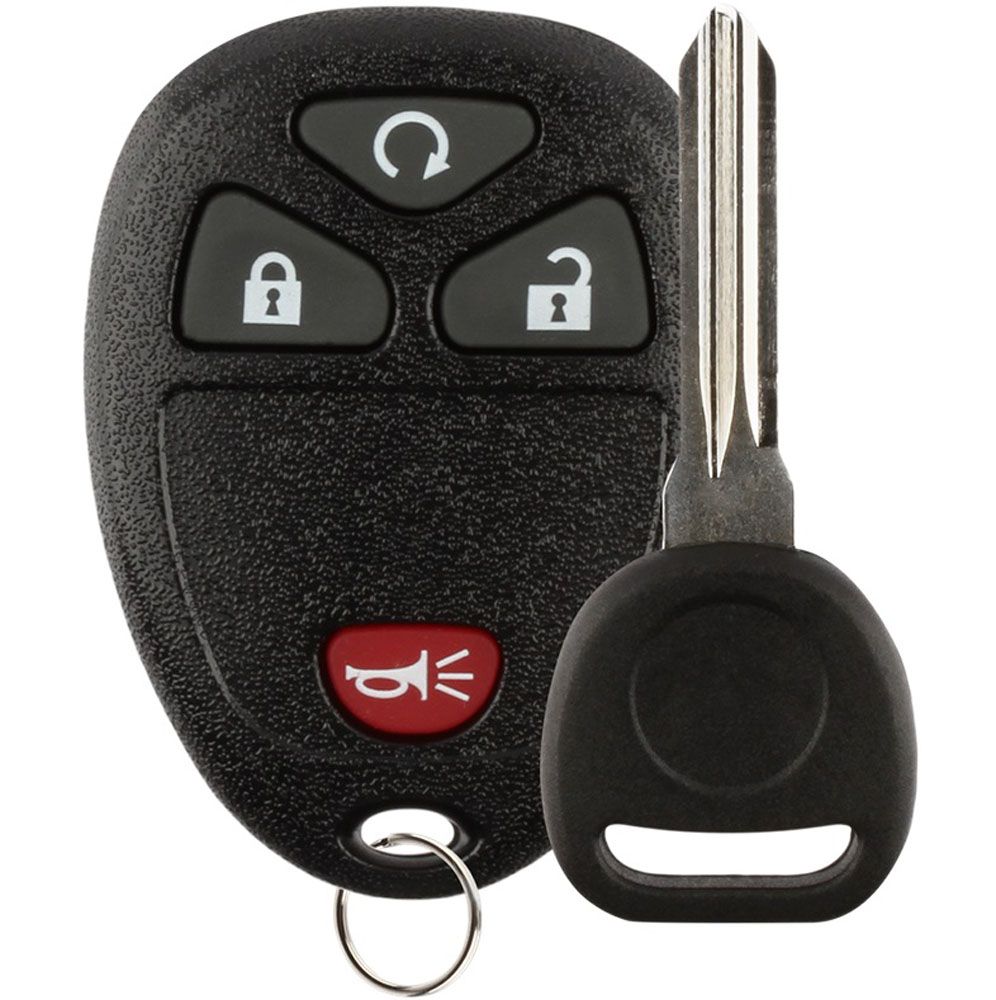

• One bundle Remote 15913421 for GM + B111 Key - brand new, aftermarket set.


• You can program this remote by yourself after you receive it (click on Programming Video tab to watch how it's done). Instructions will work only for 2006-2010 vehicles. If your car is 2011 and younger, this remote must be professionally programmed by a local automotive locksmith (click here for Locksmith Search ).


• This ignition key must be professionally cut when received by a local automotive locksmith (click here for Locksmith Search ) or hardware store. Proof of ownership for your vehicle will most likely be required (like title, registration, insurance card) to make sure you are the owner or authorized user. You can program this key at home using your existing working key (scroll down for programming instructions). Cutting only will NOT allow you to start the engine.


• Price above is quoted for one replacement keyless entry set (remote + key).


• WE DO NOT CUT OR PROGRAM REMOTE KEYS AT OUR FACILITY. Please contact your car locksmith for pricing.

---

More Information:

• Aftermarket Remote Part Numbers: 20952474, 15913421, 20868672, 22759546, 22936098
• FCC ID: OUC60270, OUC60221
• Frequency: 315 MHz
• Battery: CR2032
• Reusable: Yes
• On Board Programming: No
• 4 Buttons: Remote engine start, Lock, Unlock, Panic alarm
• Aftermarket GM Ignition Transponder Key B111
• Chip ID: Philips 46 (Circle+)
• A1: GMX320, GMX-100C, GMX-272C, GMX381C
• Ilco: B111-PT
• Hata: HAT320PK, HAT-100C, HAT381CP
• Jet: GMX320PHT, GMX381CPPHT
• Strattec: 693126, 692139, 5904001, 692933, 692932, 692931, 593254, 693121, 693127, 692930, 5913736
• OEM: 23372322
• Test key: B106 / B109
• Code Series: G0001-3631
• Groove: 93

---

This set fits the following vehicles:

08 09 10 11 12 13 14 15 16 17 Buick Enclave
07 08 09 10 11 12 13 Cadillac Escalade
07 08 09 10 11 12 13 Chevrolet Avalanche
07 08 09 Chevrolet Equinox
08 09 10 11 12 13 14 Chevrolet Express
07 08 09 10 11 12 13 Chevrolet Silverado
08 09 10 11 12 13 14 Chevrolet Suburban
08 09 10 11 12 13 14 Chevrolet Tahoe
09 10 11 12 13 14 15 16 17 Chevrolet Traverse
08 09 10 11 12 13 14 15 16 17 GMC Acadia
08 09 10 11 12 13 14 GMC Savana
07 08 09 10 11 12 13 GMC Sierra
07 08 09 10 11 12 13 14 GMC Yukon
08 09 Hummer H2
07 08 09 Pontiac Torrent
07 08 09 Saturn Outlook
07 08 09 Suzuki XL-7

---

Ignition Key Programming Instructions:

ALL KEYS LOST/MISPLACED
1. Insert the new cut key into ignition cylinder and turn it to the ON position. The security light on the dash will light up and stay on for about ten minutes. When the security light goes out, you have one minute to start the next step.
2. Turn the ignition cylinder to OFF and then back to the ON position. The security light on the dash will illuminate and stay on for ten more minutes. When the security light goes out, you have one minute to start the next step.
3. Turn the ignition cylinder to OFF and then back to the ON position. The security light on the dash will illuminate and stay on for ten more minutes.
4. After the security light has gone off for the third time, turn key off and remove from ignition. The key is now programmed and all other keys have been erased.
5. Insert key and start vehicle to test key.

TO ADD AN EXTRA KEY (you must have at least one working key)

1. Insert an existing programmed working key into the ignition cylinder.
2. Turn ignition to the ON position for 5 seconds, then back to OFF position.
3. Remove the existing key and within 5 seconds insert new key and turn it to the ON position for 5 seconds.
4. Turn key OFF then back to ON. The key is now programmed. Start vehicle to test the key.
